CHIA8426-14W 14W Aluminum Showcase Light

Aluminum Showcases LED Lighting, Display Cabinet Rotating LED Jewelry Showcase Light

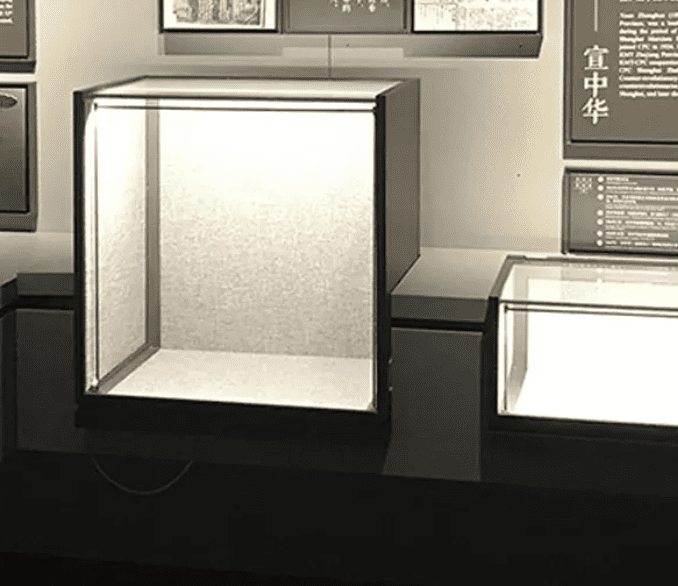

LED cabinet light is mainly used for product illumination in the display showcase at jewelry stores, watch stores, and museum, etc.

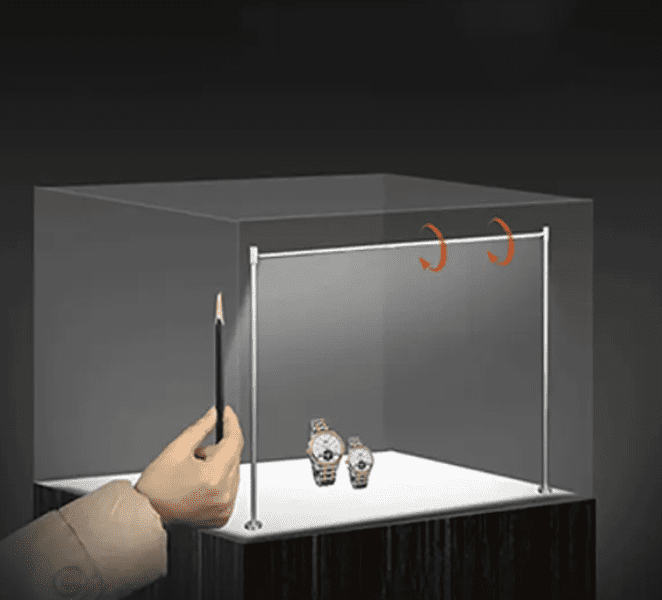

LED standing light uses XPE CREE LED chip control to project onto lighting countertop jewelry display case LED lighting, smart watch and fashion clothing, and it is very easy and smooth to install the display stand, adding glossy bright atmosphere and attracting more people’s attention.

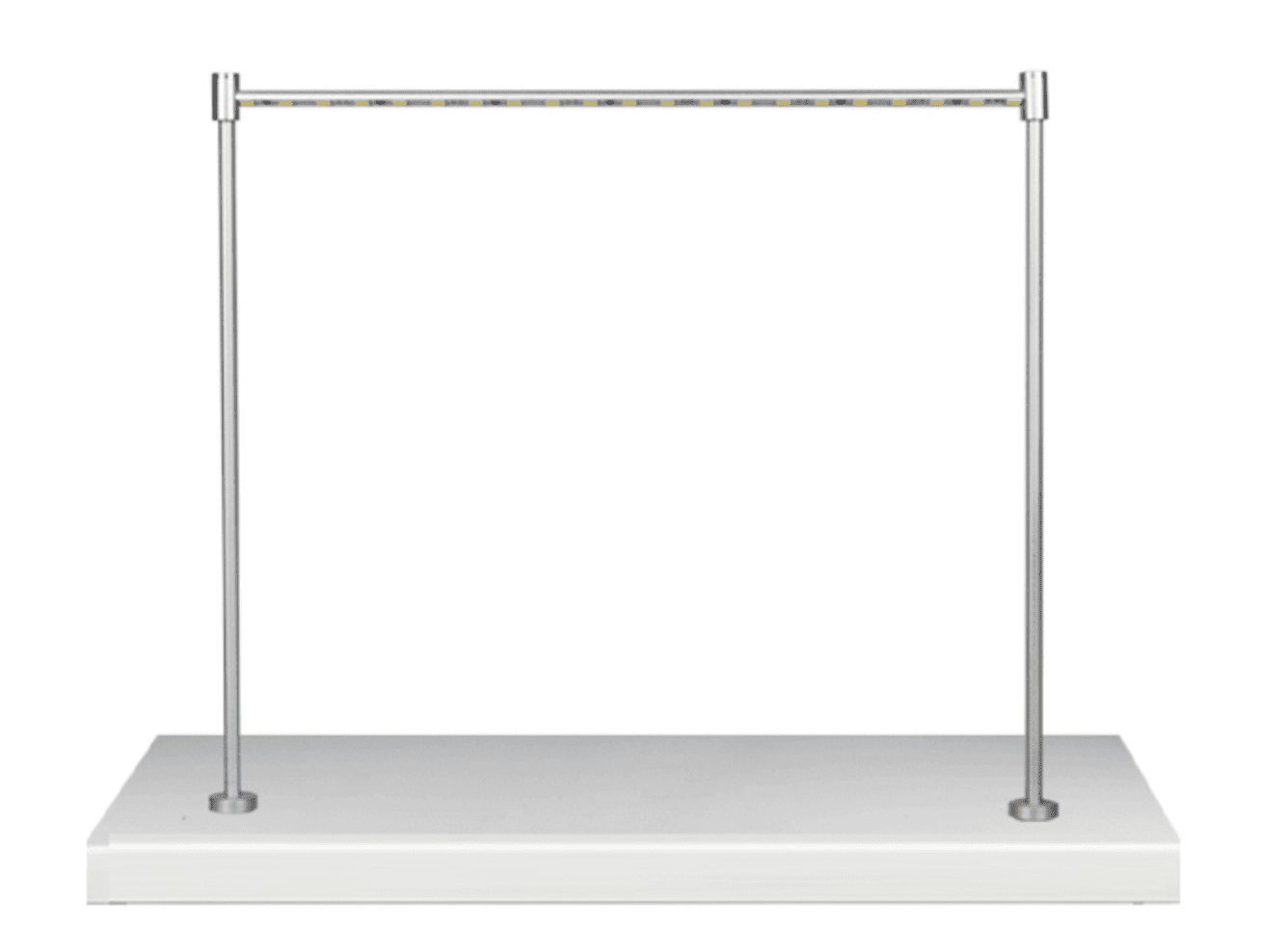

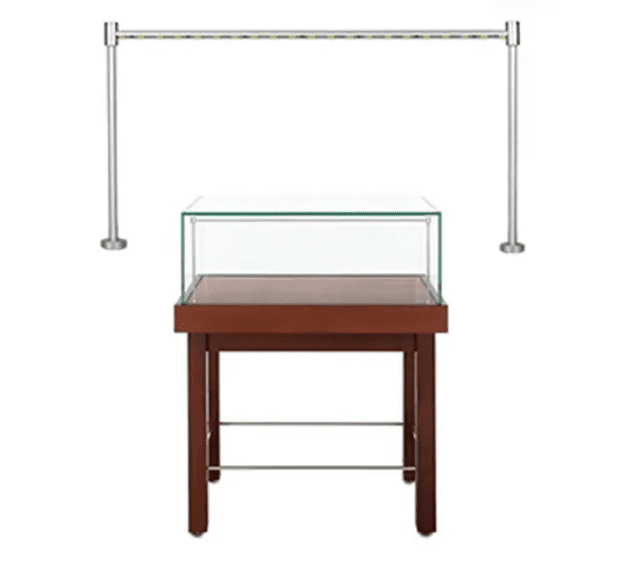

The lamp pole is 400mm high, the lamp length can be customized, the maximum length is 1500mm, the installation requires drilling a hole with a diameter of 6mm, and the embedding height is 40mm.

Model: CHIA-8426-14W
Color Temperature: 3000K/4000K/6000K
Body Color: Black, Silver(optional)
Should be powered by DC12V

Additional information

Product Details:

Model	CHIA8426-14W
Rated Power	14W
LED Light Source	COB
LED Chip	SMD2835
Color Temperature(CCT)	3000k,4000k,6000k
Light Sizes	Customizable within 1500mm
Body Color	Black, Silver(optional)
Input voltage	12V
Color Rendering Index(Ra)	>=80
Light Fixture Material	Aviation aluminium
Luminous flux	1300Lm
Work Time(Hour)	20000
Light Beam Angle(Degree)	110
Warranty (Year)	3

What this fixture is for

The CHIA8426-14W is rated at 14W, delivering 1300Lm, on a SMD2835 chip, with a colour rendering index of Ra80. Length and pole sizes: Customizable within 1500mm. Beam angle 110° gives a wide wash — use it to light a whole shelf or back panel evenly rather than to accent one object. It runs on 12V. The body is machined from aluminium, so it dissipates heat inside a closed cabinet instead of cooking the merchandise.

Specifying it correctly

Colour temperature: available in 3000K / 4000K / 6000K — 3000K for gold and warm wood, 4000K for steel, silver and watches, 6000K for diamonds, crystal and glass.
Beam angle: 110°. Choose by object size, not by brightness; a beam that is too wide flattens the display and one that is too narrow leaves hot spots with dark gaps.
Power: 12V — low voltage, so the track is safe to touch inside a customer-reachable cabinet. Size the driver with headroom rather than running it at 100%.
Service life: 20000 hours
Warranty: 3 years
Certification: standard builds carry CE and RoHS. UL/ETL for North America and ENEC for EU tender work are quoted case by case — tell us the destination in the first email.
