Why Choose the CHIA8428-1?
Designed for professional display lighting, the CHIA8428-1 LED Light Bar combines high luminous efficiency with a slim profile and flexible installation. The magnetic mounting system simplifies installation while allowing easy removal for maintenance or repositioning.
Its wide beam angle provides smooth, shadow-free illumination, helping merchandise, collectibles, and exhibits stand out with consistent brightness. Combined with customizable lengths and multiple color temperatures, it offers a practical and elegant lighting solution for both standard and bespoke display projects.
Model: CHIA8428-1
LED Chip: SMD 2835
Power: 10W/m
Luminous Flux: 1000 lm/m
CRI: Ra80
Beam Angle: 110°
Voltage: DC 12V
Material: Aluminum
Installation: Magnetic Mounting
Length: Customizable (Max. 2500mm)
Additional information
Product Details:
| Item | Specification |
|---|---|
| Model No. | CHIA8428-1 |
| Product Type | LED Light Bar |
| LED Chip | SMD 2835 |
| CRI | Ra ≥ 80 |
| Power Consumption | 10W/m |
| Luminous Flux | 1000 lm/m |
| Beam Angle | 110° |
| Color Temperature (CCT) | 3000K / 4000K / 6000K |
| Finish Color | Black / Silver |
| Housing Material | Aluminum |
| Input Voltage | DC 12V |
| Installation Method | Magnetic Mounting |
| Standard Length | Customizable, Max. 2500mm |
| Net Weight | 240g/m |
| Gross Weight | 250g |
| Applications | Display Cabinets, Retail Shelving, Jewelry Counters, Museums, Exhibition Displays, Showcase Lighting |
CHIA8428-1 LED Light Bar
Slim Magnetic LED Light Bar for Display Cabinets & Retail Lighting
The CHIA8428-1 LED Light Bar is a sleek and versatile lighting solution designed specifically for display cabinets, showcases, and commercial retail environments. Powered by high-efficiency SMD 2835 LEDs, it delivers 1000 lumens per meter with uniform illumination and a 110° wide beam angle, ensuring even light distribution across display surfaces.

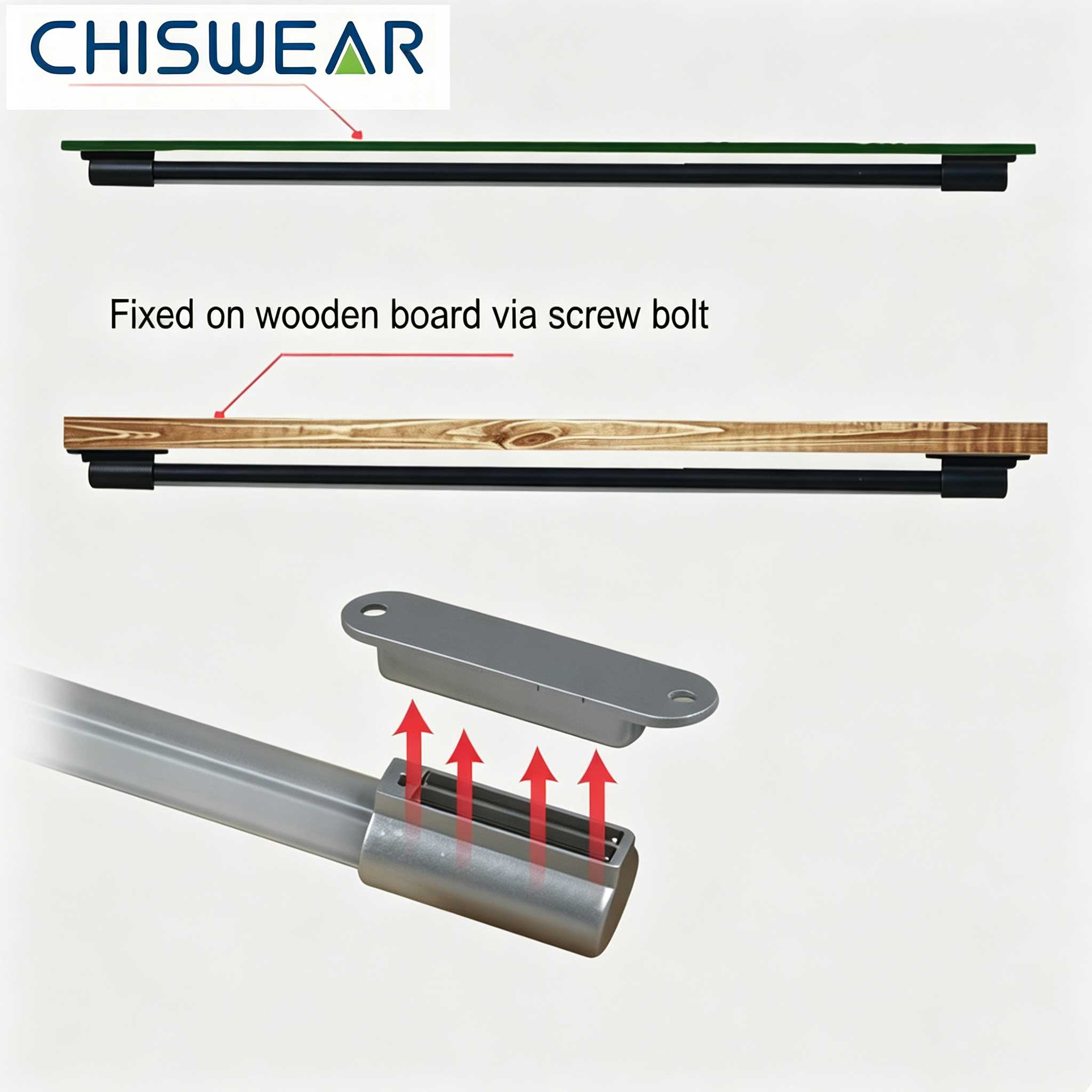

Its magnetic mounting system allows for fast, tool-free installation and effortless repositioning, making it ideal for display cabinets that require flexible lighting layouts. The slim aluminum housing offers excellent heat dissipation while maintaining a clean, modern appearance that complements premium retail and exhibition spaces.
Available in multiple color temperatures and customizable lengths up to 2500mm, the CHIA8428-1 is suitable for a wide range of display lighting projects.
Key Features
- High-efficiency SMD 2835 LED light source
- Bright output of 1000 lumens per meter
- Wide 110° beam angle for uniform illumination
- Energy-efficient 10W per meter power consumption
- Available in 3000K, 4000K, and 6000K color temperatures
- Durable aluminum housing with excellent heat dissipation
- Magnetic mounting for quick installation and easy maintenance
- Operates on safe DC 12V low-voltage power
- Available in Black and Silver finishes
- Custom lengths available up to 2500mm
- Clean, minimalist design for modern display environments
Applications
The CHIA8428-1 LED Light Bar is ideal for:
- Glass display cabinets
- Jewelry showcases
- Retail shelving
- Museum display cases
- Art galleries
- Cosmetics counters
- Watch and eyewear displays
- Exhibition booths
- Commercial showcases
- Hospitality display areas
- Home display cabinets
