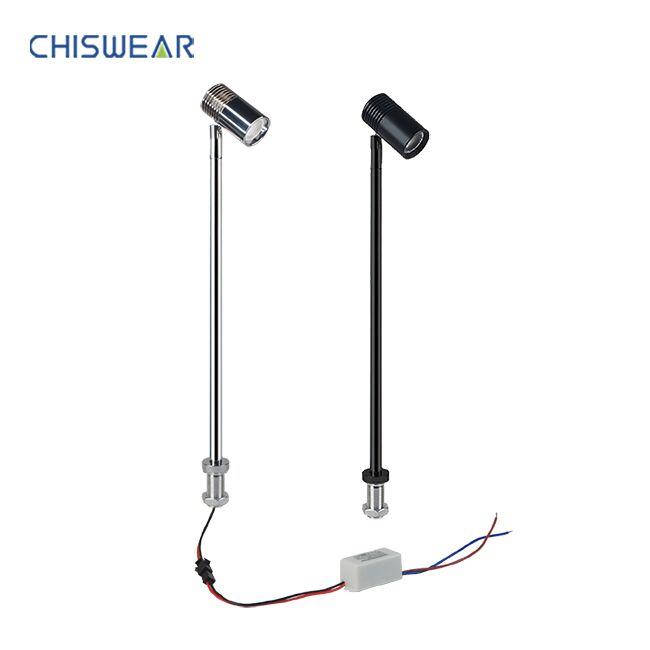

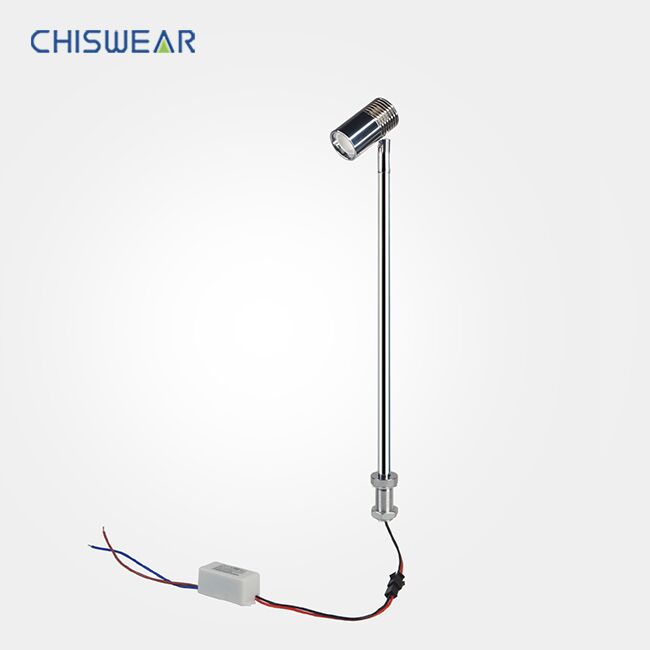

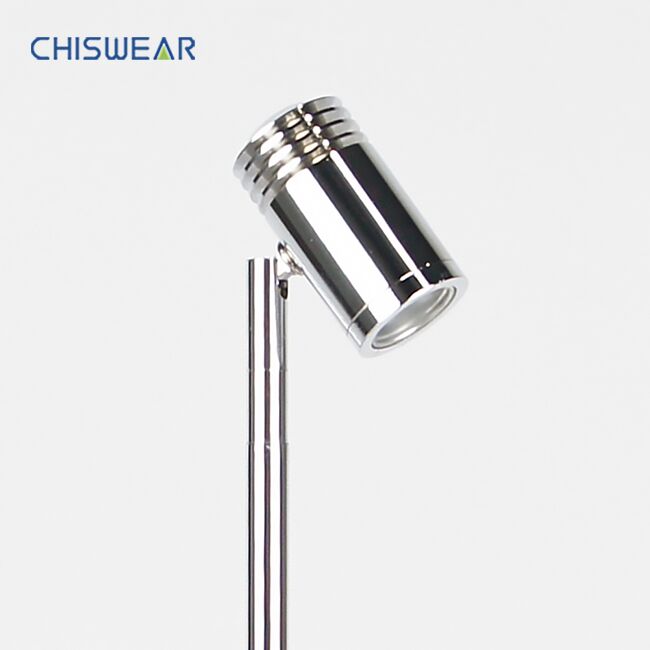

CHIA7316-3W 3W Mini Pole Spotlight
Optional Beam Angle 30,45,60 3w Mini LED Jewelry Display Showcase Lighting Fixture Suppliers
Short Description:

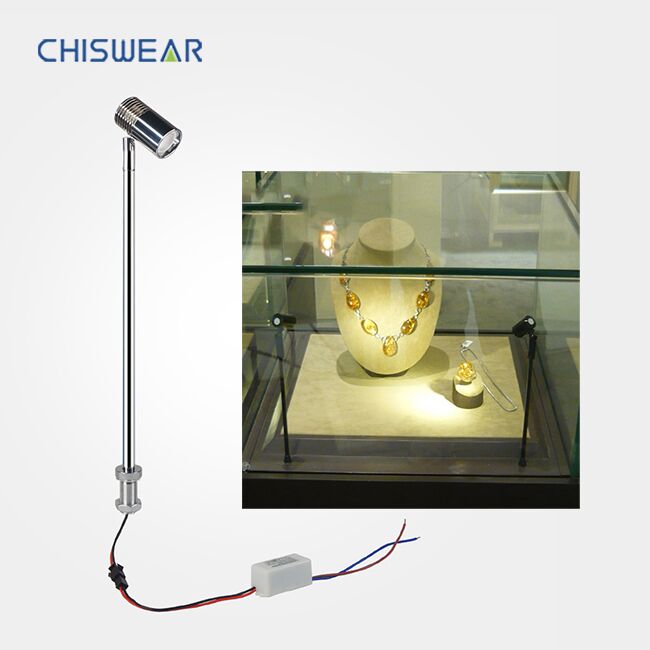

LED stand light use Bridgelux LED chip control to project on lighting countertop jewelry showcase led lighting, Smartwatch, and fashion Clothes, and very easy fluent mount display shelf to increase glossy bright atmosphere attractive to more than people attentions.
12v supply power 1pcs 3-watt LED light beads, to ensure mini display lights the highest quality that long-lasting. so it should be equipped with constant current and constant voltage to provide a routine work driver.
compare with other led stand pole lights on the Chiswear website, CHIA7316-3W has a different beam angle, 30,45,60, and this is good little directional light.
Hole sizes: drill one hole 12 mm in diameter.
Provide Led stand pole height sizes: 200mm, 300mm, and 400mm.
Product Model:CHIA7316-3W
LED Chip : Bridgelux
Feature: adjustable, 300 rotatable
Luminous flux:210 Lm
Work Time (Hour)：20000
Additional information
Product Details:
| Model | CHIA7316-3W |
| Rated Power | 1*3W |
| LED Light Source | COB |
| LED Chip | Bridgelux |
| Color Temperature(CCT) | 3000k,4000k,6000k |
| Light Pole Sizes | Optional |
| Body Color | Customized |
| Input voltage | 90-260V |
| Color Rendering Index(Ra) | 90 |
| Light Fixture Material | Aviation Aluminium |
| Luminous flux | 210 Lm |
| Work Time(Hour) | 20000 |
| Light Beam Angle(Degree) | 30,45,60 |
| Warranty (Year) | 3 |
What this fixture is for
The CHIA7316-3W is rated at 1*3W, delivering 210 Lm, on a Bridgelux chip, with a colour rendering index of Ra90. Beam angle 30°/45°/60° gives a medium pool that covers a whole tray or a necklace bust with soft falloff at the edges. It runs on 90-260V. The body is machined from aluminium, so it dissipates heat inside a closed cabinet instead of cooking the merchandise.
Specifying it correctly
- Colour temperature: available in 3000K / 4000K / 6000K — 3000K for gold and warm wood, 4000K for steel, silver and watches, 6000K for diamonds, crystal and glass.
- Beam angle: 30°/45°/60°. Choose by object size, not by brightness; a beam that is too wide flattens the display and one that is too narrow leaves hot spots with dark gaps.
- Power: 90-260V. Confirm the supply before ordering.
- Finish: housing colour is customised on request, so the fixture can disappear into dark joinery or match a branded interior.
- Service life: 20000 hours
- Warranty: 3 years
- Certification: standard builds carry CE and RoHS. UL/ETL for North America and ENEC for EU tender work are quoted case by case — tell us the destination in the first email.
