Slim T04F Embedded Track Flat Recessed Power Track System for Modular Lighting Applications

Category Recessed Track Tags Display Track Lighting, Jewellery Showcase Lights, Led Jewelry Display Rail Wholesale, Led Jewelry Showcase Light, Mini Led Spotlight 12v, Mini Magnetic Spotlight

Why Choose the T04F Embedded Track-Flat?

The T04F Embedded Track-Flat is engineered for professionals who demand reliability, flexibility, and aesthetic excellence in their lighting installations. Its compact flat profile allows it to be embedded seamlessly into a wide range of surfaces, ensuring that the track itself remains virtually invisible while providing robust power distribution to your LED fixtures.

The aluminum body not only offers structural integrity but also acts as an effective heatsink, prolonging the life and performance of connected LED components. With compatibility across both DC 12V and DC 24V systems, this track adapts to your existing power infrastructure without the need for additional converters.

Whether you are designing a sophisticated retail display, a modern exhibition space, or a custom furniture lighting project, the T04F provides the foundation for a clean, modular, and professional lighting system. Its lightweight construction simplifies installation, while the option for custom lengths ensures a perfect fit every time.

Model: T04F
Type: Embedded Track-Flat
Material: Aluminum
Finish: Black / Silver
Load Current: Max. 8A
Input Voltage: DC 12V / DC 24V
Installation: Recessed / Embedded

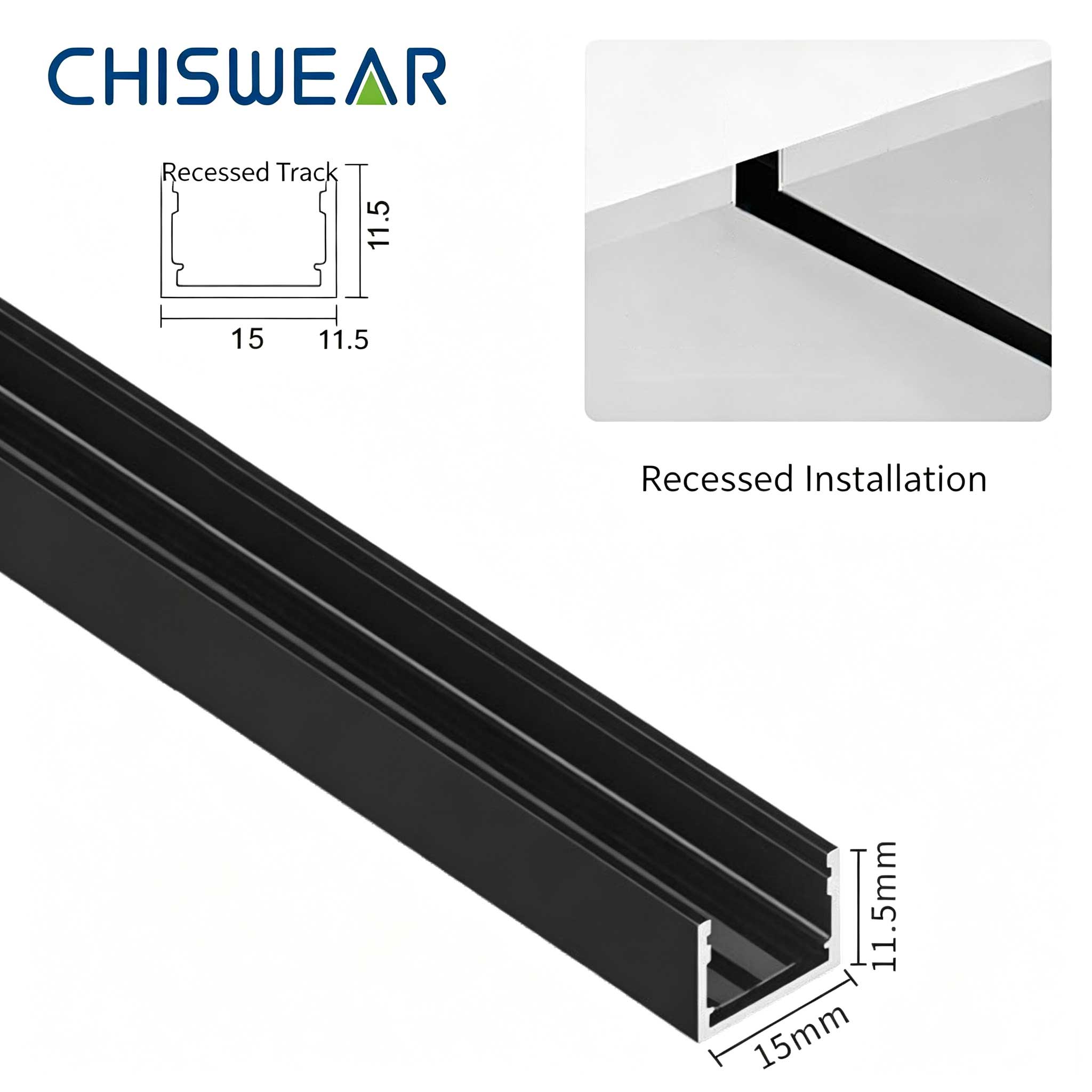

Opening Size: 15mm × 11.5mm
Length: Customizable (Max. 2000mm)
Net Weight: 175g/m

Additional information

Product Details:

Item	Specification
Model No.	T04F
Product Type	Embedded Track-Flat (Flat Recessed Power Track)
Material	Aluminum
Finish Color	Black / Silver
Load Current	Max. 8A
Input Voltage	DC 12V / DC 24V (Compatible with both)
Length	Customizable, Max. 2000mm
Installation Method	Embedded / Recessed Installation
Opening Size	15mm (W) × 11.5mm (H)
Product Net Weight	175g per meter
Applications	Retail Displays, Showcases, Exhibition Booths, Furniture Lighting, Commercial Lighting Systems, Linear Lighting Projects

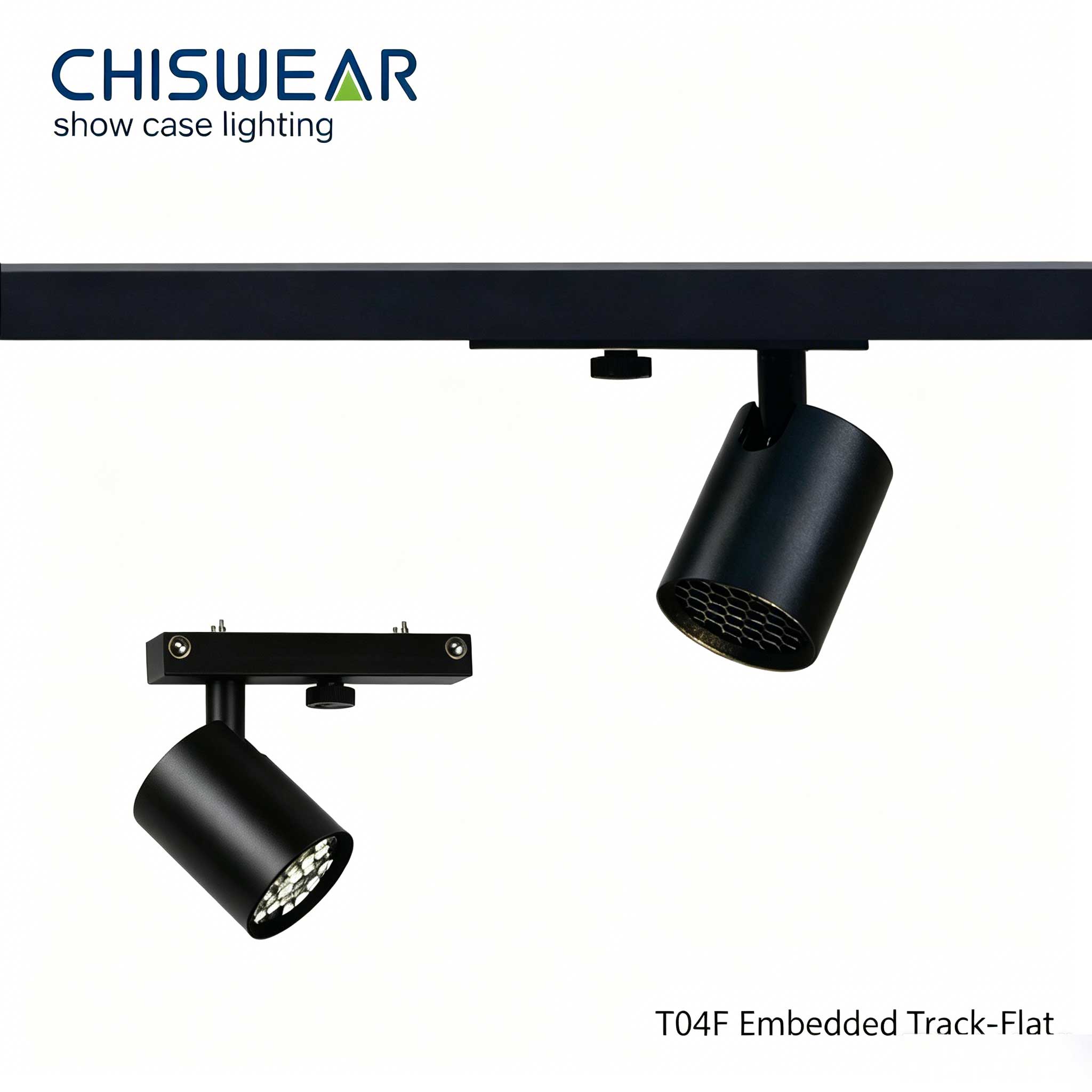

T04F Embedded Track-Flat

Flat Recessed Power Track System for Modular Lighting Applications

The T04F Embedded Track-Flat is a slim, recessed power track system designed for flexible and modular lighting installations. Constructed from high-quality aluminum, it offers both durability and excellent heat dissipation, making it an ideal foundation for LED lighting systems in commercial and residential environments.

With a compact opening size of just 15mm × 11.5mm, this flat track is specifically engineered for embedded installation, providing a clean, flush finish that blends seamlessly into ceilings, cabinetry, shelving, and display units. Its minimalist profile ensures it remains visually unobtrusive while delivering reliable power distribution to connected lighting fixtures.

Compatible with both DC 12V and DC 24V systems and supporting a maximum load current of 8A, the T04F offers versatility for a wide range of LED light bar and spot lighting configurations. Customizable lengths up to 2000mm allow for precise adaptation to project-specific requirements.

Key Features

Premium aluminum construction for strength and thermal management
Flat profile with compact 15mm × 11.5mm opening for discreet embedding
Supports both DC 12V and DC 24V input voltages
Maximum 8A load current for reliable power distribution
Embedded installation ensures a clean, flush, professional finish
Available in Black and Silver finishes to match various design aesthetics
Customizable lengths up to 2000mm for tailored project solutions
Lightweight design at only 175g per meter for easy handling and installation
Suitable for modular LED lighting systems
Durable, corrosion-resistant aluminum surface

Applications

The T04F Embedded Track-Flat is ideal for:

Retail display and shelving lighting systems
Showcase and glass cabinet illumination
Exhibition booths and trade show displays
Under-cabinet and furniture lighting
Commercial linear lighting projects
Architectural accent lighting
Gallery and museum display tracks
Reception and hospitality areas
Residential cove and ceiling lighting
Modular LED strip and light bar systems
