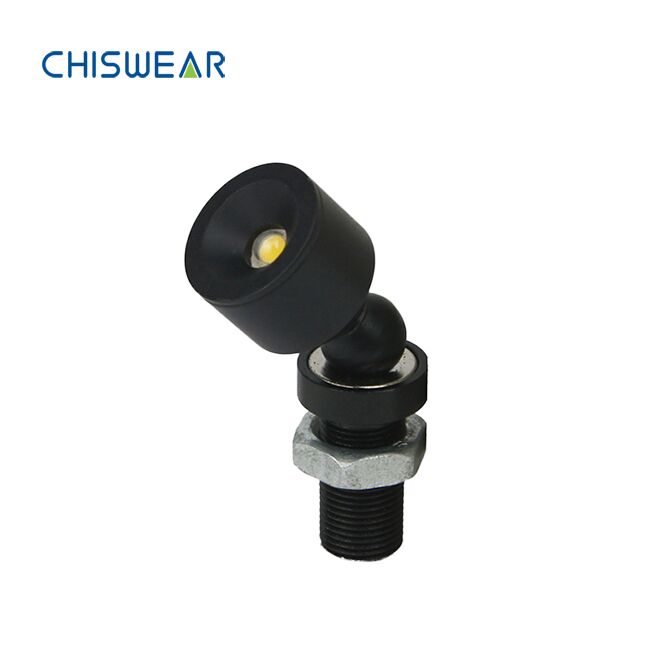

CHIA313-C-1W 1W Rotating Mini Pole Spotlight
Mini Small Spot Led Jewelry Light for Recessed Ceiling Indoor Display Showcase
Short Description:
LED mini spot light use XPE CREE LED chip control to project on lighting countertop jewelry showcase led lighting, Smartwatch, and fashion Clothes, and very easy fluent mount display shelf to increase glossy bright atmosphere attractive to more than people attentions.
Easily recessed on the ceiling，showcase and counter, and Manual the way that needs to drill one hole 12 mm in diameter.
12v supply power 3pcs 3-watt LED light beads, and need reserved to a driver power supplier-12V constant current and constant voltage.
Hard durable Aviation aluminium LED pole light
Product Model:CHIA313-C-1W
LED Chip : Bridgelux LED chip

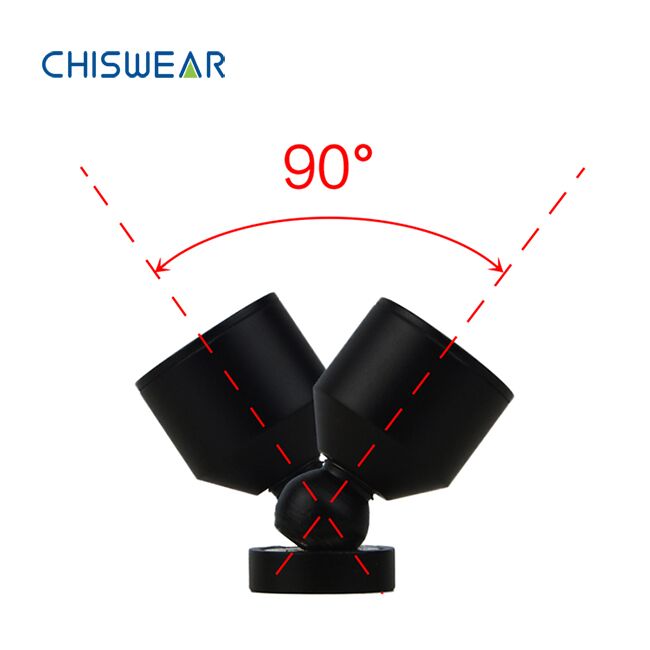

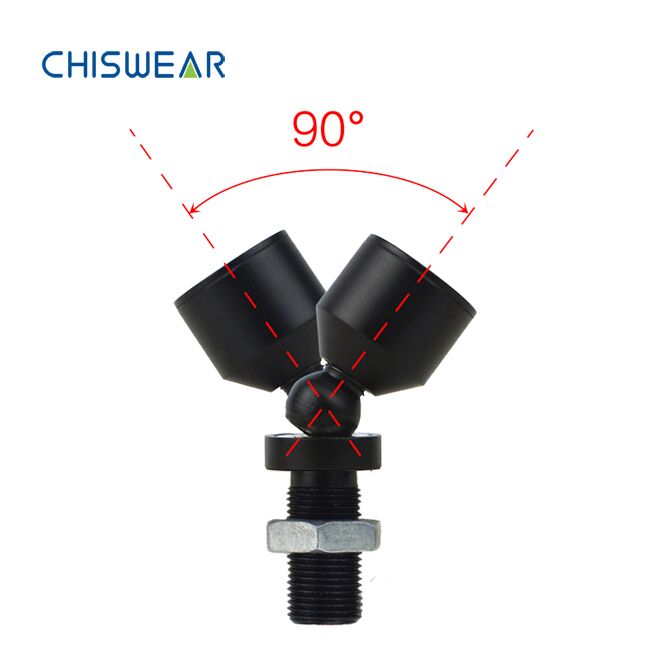

Feature: need drilling hole into mounted, 90 degree range rotating
Luminous flux:110 Lm Work
Additional information
Product Details:
| Model | CHIA313-C-1W |
| Rated Power | 1 W |
| LED Light Source | COB |
| LED Chip | Bridgelux LED chip |
| Color Temperature(CCT) | 3000k,4000k,6000k |
| Light Pole Sizes | Optional |
| Body Color | Customized |
| Input voltage | 90-260V |
| Color Rendering Index(Ra) | >=80 |
| Light Fixture Material | Aviation Aluminium |
| Luminous flux | 110 Lm |
| Work Time(Hour) | 20000 |
| Light Beam Angle(Degree) | 110 |
| Warranty (Year) | 3 |
What this fixture is for
The CHIA313-C-1W is rated at 1 W, delivering 110 Lm, on a Bridgelux LED chip chip, with a colour rendering index of Ra80. Beam angle 110° gives a wide wash — use it to light a whole shelf or back panel evenly rather than to accent one object. It runs on 90-260V. The body is machined from aluminium, so it dissipates heat inside a closed cabinet instead of cooking the merchandise.
Specifying it correctly
- Colour temperature: available in 3000K / 4000K / 6000K — 3000K for gold and warm wood, 4000K for steel, silver and watches, 6000K for diamonds, crystal and glass.
- Beam angle: 110°. Choose by object size, not by brightness; a beam that is too wide flattens the display and one that is too narrow leaves hot spots with dark gaps.
- Power: 90-260V. Confirm the supply before ordering.
- Finish: housing colour is customised on request, so the fixture can disappear into dark joinery or match a branded interior.
- Service life: 20000 hours
- Warranty: 3 years
- Certification: standard builds carry CE and RoHS. UL/ETL for North America and ENEC for EU tender work are quoted case by case — tell us the destination in the first email.
