CHIA-2404-5W 5W Rotating Showcase Spotlight

Freely Rotate 360 Degree Jewelry LED Display Light in Showcase Lighting

Short Description:

This pole lamp is a large-range light with an illumination angle of 110 °, and the illumination area is also larger compared to other models. This product can freely adjust the irradiation height, and can be customized for special height requirements. There are also different colors to choose from, such as silver and black, and colors can also be customized.

Product Model: CHIA2404-5W

LED Chip : OSRAM

Color Temperature(CCT): 3000k,4000k,6000k

Luminous Flux:480 Lm

Work Time(Hour)：20000

Light Fixture Material: Aviation aluminium

Additional information

Product Details:

Model	CHIA-2404-5W
Rated Power	5W
LED Light Source	COB
LED Chip	OSRAM
Color Temperature(CCT)	3000k,4000k,6000k

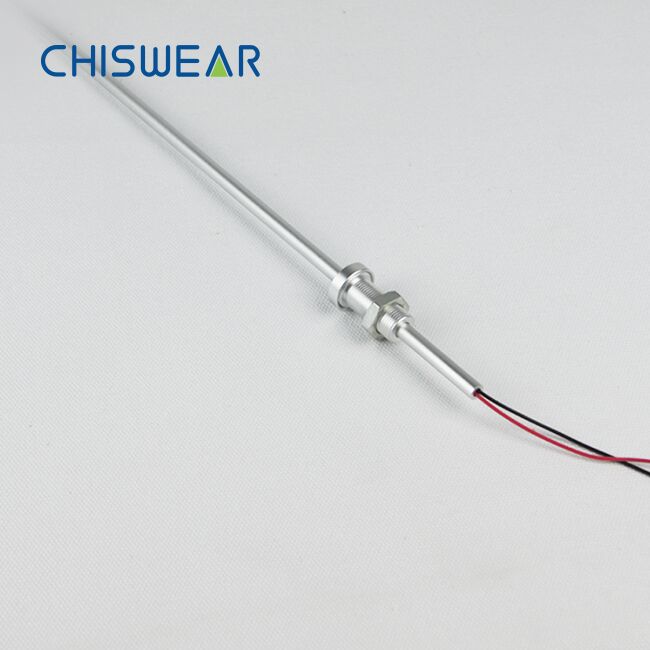

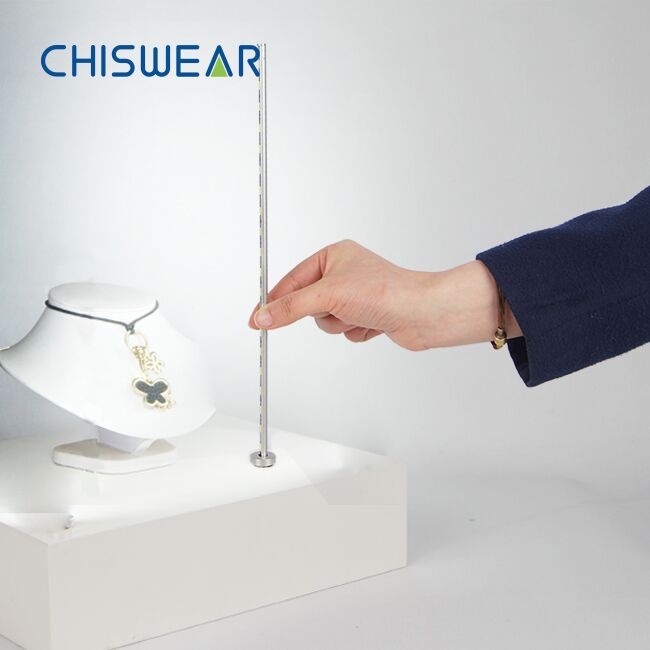

Installation Method	drill hole mount diameter 12mm, and so easy slide pole parts, and change to freedom stretch height
Body Color	Black or Customized
Input voltage	12V
Color Rendering Index(Ra)	>=90
Light Fixture Material	Aviation Aluminum
Luminous flux	480Lm
Work Time(Hour)	20000
Light Beam Angle(Degree)	110 degree
Warranty (Year)	3

What this fixture is for

The CHIA-2404-5W is rated at 5W, delivering 480Lm, on an OSRAM chip, with a colour rendering index of Ra90. Beam angle 110 degree gives a wide wash — use it to light a whole shelf or back panel evenly rather than to accent one object. It runs on 12V. The body is machined from aluminium, so it dissipates heat inside a closed cabinet instead of cooking the merchandise.

Specifying it correctly

Colour temperature: available in 3000K / 4000K / 6000K — 3000K for gold and warm wood, 4000K for steel, silver and watches, 6000K for diamonds, crystal and glass.
Beam angle: 110 degree. Choose by object size, not by brightness; a beam that is too wide flattens the display and one that is too narrow leaves hot spots with dark gaps.

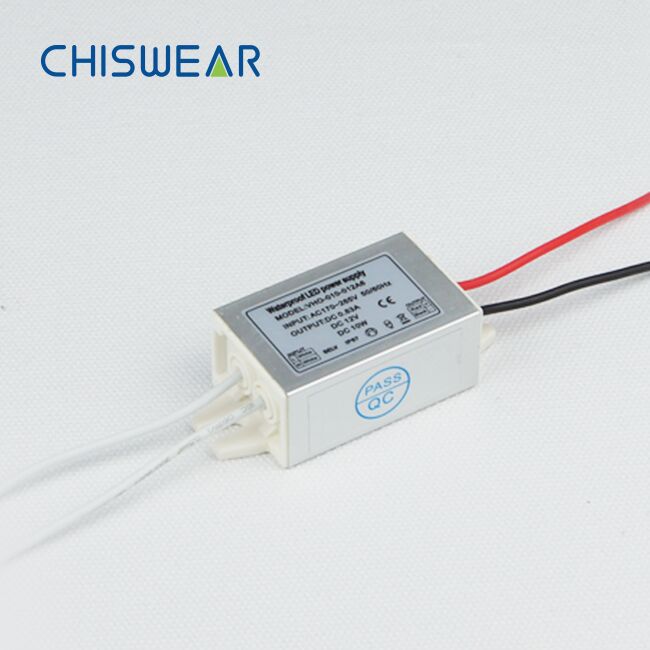

Power: 12V — low voltage, so the track is safe to touch inside a customer-reachable cabinet. Size the driver with headroom rather than running it at 100%.
Finish: housing colour is customised on request, so the fixture can disappear into dark joinery or match a branded interior.
Service life: 20000 hours
Warranty: 3 years
Certification: standard builds carry CE and RoHS. UL/ETL for North America and ENEC for EU tender work are quoted case by case — tell us the destination in the first email.

Mini Pole Spotlights — the full family this model belongs to
Jewelry display lighting — beam angle, CCT and CRI guidance for this application
Full product catalogue
Request a quote, sample or OEM pricing
