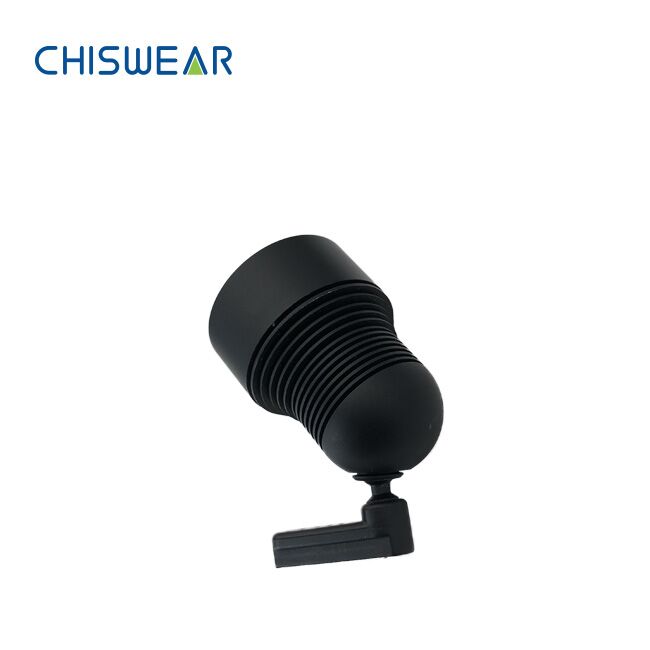

CHIB7538-P-7W 7W Magnetic Track Spotlight
Commercial Exhibition Lighting Freedom Adjustment LED Magnetic Track Light for LED Showcase Lighting
Short Description:

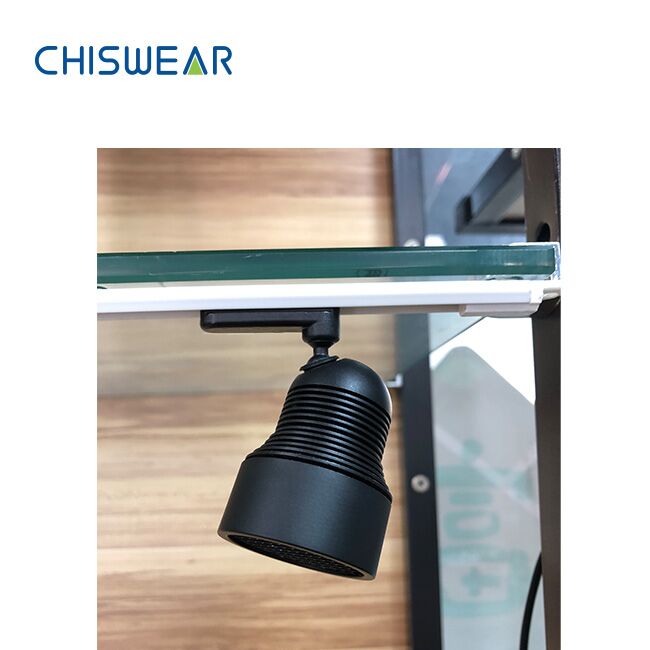

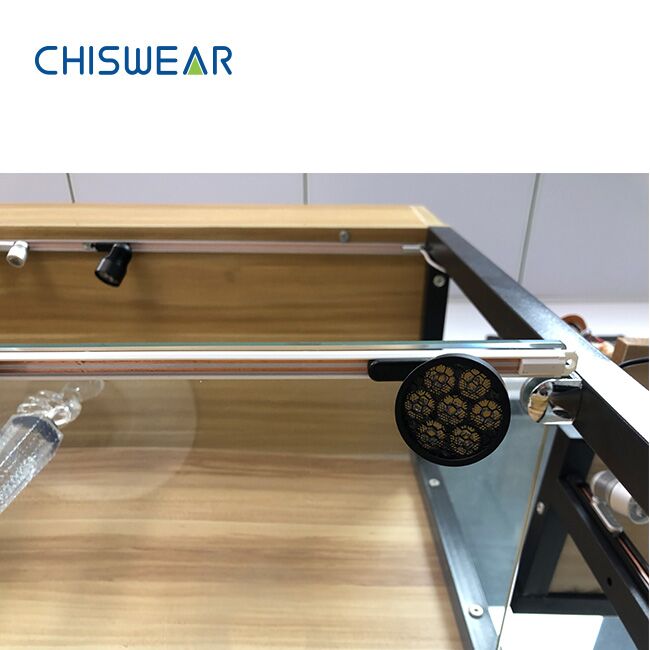

Our magnetic track light is suitable for Jewelry display lighting and museum display case lighting. 12v track lighting uses 4 pieces of 7W COB chip. The lamp head of 12v mini spotlight can be rotated 300°, and the angle can be adjusted 80°. The material of the lamp shell is aviation aluminum and aluminum honeycomb dazzling mesh.
Product Model: CHIB7538-P-7W
LED Chip : OSRAM
Track Light Rail: Round track pole, Flat track pole
Feature: Movable, 300 rotatable
Mount Way: Fit to completely mounted on a magnetic track pole
Luminous Flux:650 Lm
Work Time (Hour)：20000
Additional information
Product Details:
| Model | CHIB7538-P-7W |
| Rated Power | 7W |
| LED Light Source | COB |
| LED Chip | OSRAM |
| Color Temperature(CCT) | 3000k,4000k,6000k |
| Mount Way | Fit to completely mounted on a magnetic track pole |
| Light Pole Sizes | Optional |
| Body Color | Customized |
| Input voltage | 12V/24V |
| Color Rendering Index(Ra) | >=90 |
| Light Fixture Material | Aviation aluminium+Aluminum honeycomb dazzling mesh |
| Luminous flux | 650 Lm |
| Work Time(Hour) | 20000 |
| Light Beam Angle(degree) | 10,45,90 |
| Warranty (Year) | 3 |
What this fixture is for
The CHIB7538-P-7W is rated at 7W, delivering 650 Lm, on an OSRAM chip, with a colour rendering index of Ra90. Beam angle 10°/45°/90° gives a wide wash — use it to light a whole shelf or back panel evenly rather than to accent one object. It runs on 12V/24V. The body is machined from aluminium, so it dissipates heat inside a closed cabinet instead of cooking the merchandise.
Glare control for customer-facing cabinets

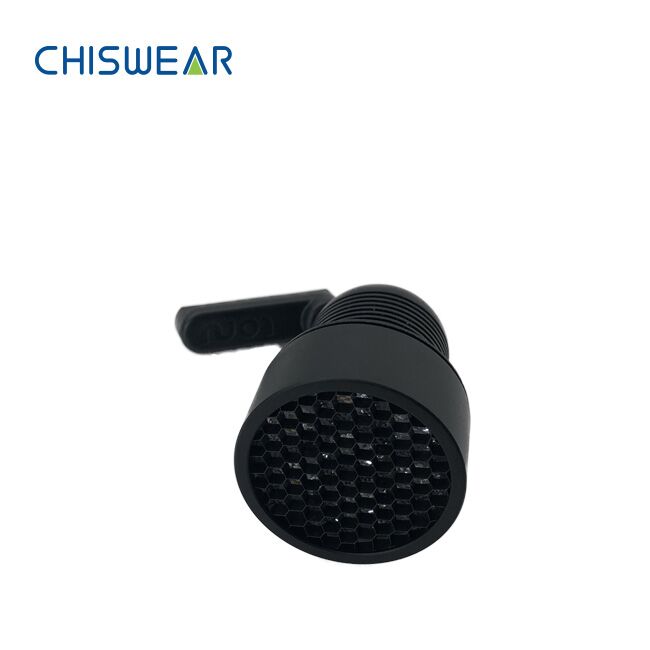

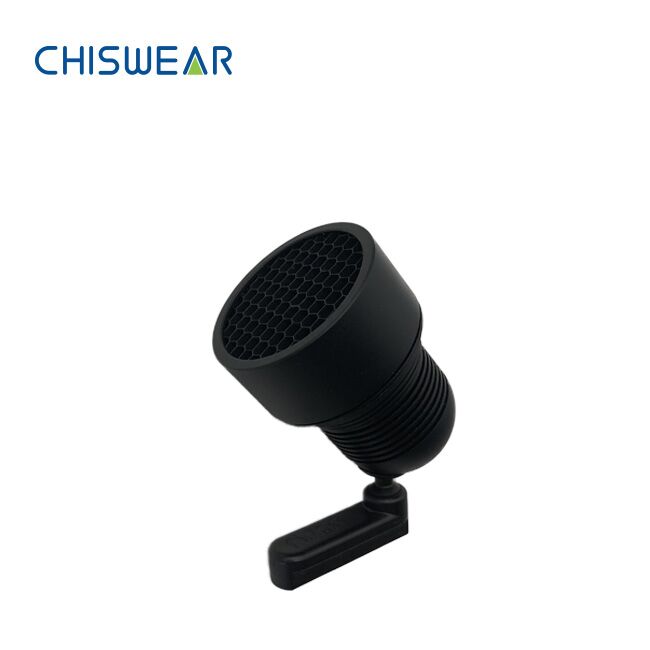

Glare at eye level is one of the most common complaints in showcase lighting: a bright raw LED source visible to browsing customers is uncomfortable and cheapens the display. The CHIB7538-P-7W uses a honeycomb anti-glare optic — the hex-cell lattice blocks off-axis light and lets only the aimed beam through, so the fixture stays visually quiet when viewed across the counter while the merchandise still receives full punch. For jewelry counters where customers lean in close, this is the difference between a display that invites attention and one that makes people squint.
Specifying it correctly
- Colour temperature: available in 3000K / 4000K / 6000K — 3000K for gold and warm wood, 4000K for steel, silver and watches, 6000K for diamonds, crystal and glass.
- Beam angle: 10°/45°/90°. Choose by object size, not by brightness; a beam that is too wide flattens the display and one that is too narrow leaves hot spots with dark gaps.
- Power: 12V/24V — low voltage, so the track is safe to touch inside a customer-reachable cabinet. Size the driver with headroom rather than running it at 100%.
- Finish: housing colour is customised on request, so the fixture can disappear into dark joinery or match a branded interior.
- Service life: 20000 hours
- Warranty: 3 years
- Certification: standard builds carry CE and RoHS. UL/ETL for North America and ENEC for EU tender work are quoted case by case — tell us the destination in the first email.
