Introduction
Display lighting is about more than brightness alone. Selecting the lighting fixture can really set the mood. It makes your display stand out beautifully. The beam angle plays a role in bringing your products and artwork to life by influencing the width of the beam that illuminates them. You could arrange a jewelry display, curate a museum gallery, or style a retail shelf. The beam angle shapes the scene. Get it right, and you’ll create an inviting glow that highlights every detail.

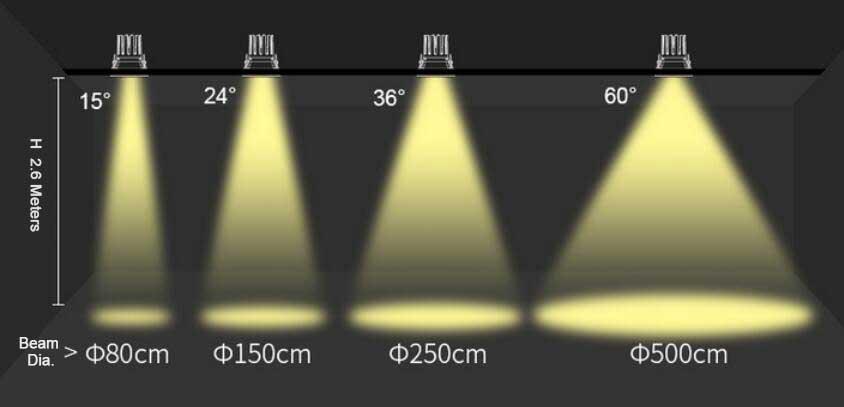

What Does “Beam Angle” Really Mean In Lighting?
Lets start by exploring its influence before delving into the specifics of the beam angle. Have you ever seen a spotlight that throws a narrow, focused glow? Other lights seem to wash the whole area in brightness. That difference is beam angle at work.
Beam angle refers to the angle at which light is emitted from a fixture. The detection is based on how the light seems to be gathered or scattered around. A narrow beam angle (for example, 15°) creates a tight spotlight. A wide beam angle (for example, 60°) lights a larger space.
Beam Angle Comparison Table
| Beam Angle | Light Spread | Ideal Use Cases |
| 10°–25° | Very narrow | Accent lighting, highlighting specific items |
| 30°–45° | Medium | Task lighting, general displays |
| 60°–120° | Wide | Ambient lighting, large area coverage |
Why Does The Beam Angle Matter So Much In Display Lighting?
Beam angle is your secret design tool. You use it whenever you set up a product display or arrange a retail layout. It has the ability to either improve or degrade the appearance of your products.
When you pick the right beam angle, your products look their best. It boosts their appeal and grabs customers’ attention.
How Does Beam Angle Affect Product Highlighting?
When a narrow beam angle is used to direct light onto objects or areas it highlights them. Makes them more prominent. In jewelry showcase lighting, a 15° beam angle points right at a diamond ring. It shows off its sparkle and leaves the rest in shadow.
How Does Beam Angle Influence Ambiance?
Beyond simply lighting a space, beam angles help you sculpt the mood. A gallery might benefit from dramatic shadows created by narrow beams, while a department store would need an even, welcoming glow provided by wider angles.
The beam angle also sets the mood of the display area. Wider beam angles spread light evenly. This gentle glow makes stores feel calm and inviting. Narrow beams can make a display look dramatic. They work well in art galleries or high-end boutiques.
Does Beam Angle Impact Energy Efficiency?
Absolutely. Use a narrow beam to light one piece or a wide beam to light a whole shelf. This way, you only light the spots that need it. That means less energy waste.
Yes, when you pick the right beam angle, the light shines exactly where you need it. This cuts waste and boosts energy efficiency. For example, magnetic track lighting lets you change the beam angle. It lights a space better and saves energy.
Lighting Result by Beam Angle Table
| Display Type | Recommended Beam Angle | Lighting Effect |
| Jewelry Showcase | 10°–25° | Focused sparkle, high contrast |
| Art Galleries/Museums | 30°–45° | Even illumination, soft contours |
| Retail Product Displays | 45°–60° | Broad coverage, minimal shadows |
How Can You Pick The Right Beam Angle For Different Types Of Displays?
Beam angle isn’t one-size-fits-all. Each use needs its own light spread. Getting it right makes your products shine.
Selecting the right beam angle means looking at your display type. It also means thinking about the effect you want.
What Beam Angle Suits Jewelry Displays?
Jewelry demands detail and dazzle. You want each gemstone to sparkle, not just look bright. A narrow angle provides that punch of intensity where it matters.
LED jewelry lighting works best with beam angles ranging from 10 to 25 degrees. They focus light on individual pieces, enhancing sparkle and detail. Products like Mini LED pole lighting fixtures offer precise illumination for such applications.
What About Art Galleries and Museums?
Museum pieces and artworks need a soft but clear wash of light. No harsh shadows. No harm from intense focus. Just balanced brilliance.
Medium beam angles range from 30° to 45°. They give artworks even light without harsh shadows. Magnetic showcase track lighting is adjustable. You can direct the light where you want.
What’s Best for Retail and Commercial Displays?
Retail lighting needs to balance visibility with ambiance. Wide beams make products easy to see. They look attractive across aisles.
Wide beam angles (60°–120°) are suitable for general lighting in retail spaces. They make sure that items are evenly lit up to improve how clearly you can see them. Use magnetic track systems. They let you adjust and customize lighting layouts easily.
What Perks Do Magnetic Track Lighting Systems Bring?
Lighting configurations were once inflexible and difficult to modify. Magnetic track lighting brings sleek, modern style. It makes lighting as flexible as your creativity.
Magnetic track lighting is versatile and easy to install. It is a popular choice for modern displays.
How Does Magnetic Track Lighting Enhance Display Flexibility?
These systems allow for quick repositioning of light fixtures without tools. This adaptability is beneficial for dynamic retail environments where displays change frequently.
Are There Specific Products Recommended?
Yes, Mini magnetic showcase track lighting fixtures provide compact, focused lighting ideal for highlighting specific products. For broader applications, Magnetic showcase track pole lighting offers adjustable beam angles and orientations.
Product Comparison Table
| Product Name | Best Use Case | Key Features |
| Mini LED Pole Lighting | Jewelry, Art Accents | Slim design, pinpoint accuracy |
| Magnetic Showcase Track Lighting | Art, Retail Shelving | Adjustable beams, easy repositioning |
| Magnetic Showcase Track Pole Lighting | Large Retail/Exhibition | Full-track flexibility, wide coverage |
How Do You Tweak Beam Angle To Save Energy?
Effective lighting design goes beyond aesthetics; it also focuses on maximizing energy efficiency. Using the right beam angle minimizes electricity waste.
Choosing the right beam angle makes light work well. This cuts energy use.
What Strategies Can Be Employed?
- Use narrow beams for focused lighting needs.
- Employ wider beams for general illumination.
- Make sure to install lights that can be adjusted for brightness based on your needs.
Use these strategies with LED showcase lights. You will save a lot of energy.
Conclusion
Beam angle is a key point when you choose showcase lighting for your display. It influences how individuals perceive your products and creates the ambiance while also enhancing lighting efficiency.
Would you like to showcase a product or illuminate a gallery area or perhaps create an ambiance, for a retail display? Selecting the right beam angle can have a great impact. Choose the right beam angle for each use, and you will improve your display’s visibility, appeal, and impact. This choice makes your showcase lighting work well and look great for both function and style.
